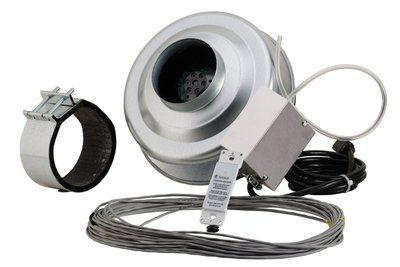

DPV Dryer exhaust fans

CSA 22-2 Listed, suitable for gas and electric clothes dryers

Supports duct runs up to 125 linear feet
Pressure-sensing switch for automatic operation
Indicator panel to show product status
5-foot power cord for 120V/1~
Galvanized metal, leak-proof housing
Complies with CSA C22-2 No.113-15
For use with gas and electric clothes dryers
Suitable for high-altitude applications

Improved dryer efficiency

The DPV helps your dryer run more efficiently by overcoming pressure losses, resulting in faster drying times.

Certified Performance

Performance is certified by HVI, and safety complies with CSA C22-2 No.113-15.

Automatic Operation

This product features a pressure switch to automatically sense when the dryer is on. A wall-mounted indicator panel with a 50-foot cable is provided to indicate proper operation of the exhaust fan.

Enhanced Safety

Integrated safety features, such as the thermal fuse, provide added protection against risks such as elevated exhaust temperatures that could cause overheating.

Some helpful tips for installing the DPV22-2:

To avoid clogging lint over the exhaust fan impeller, install a DBLT 4W (#46000) secondary lint trap (not suitable for gas dryers) between the dryer and the DPV22-2. This lint trap filters the air and catches the lint, thus protecting the product and ductwork. The less lint accumulation, the better your dryer performs.
Add the DPV22-2 in the dryer duct run only when the length of the run exceeds 40 feet (12 meters) with no bends, 35 feet (10.6 meters) with one bend, or 30 feet (9 meters) with two bends. The product can be used to effectively maintain dryer exhaust in 4-inch (102mm) duct runs up to 125 linear feet (38 linear meters).
